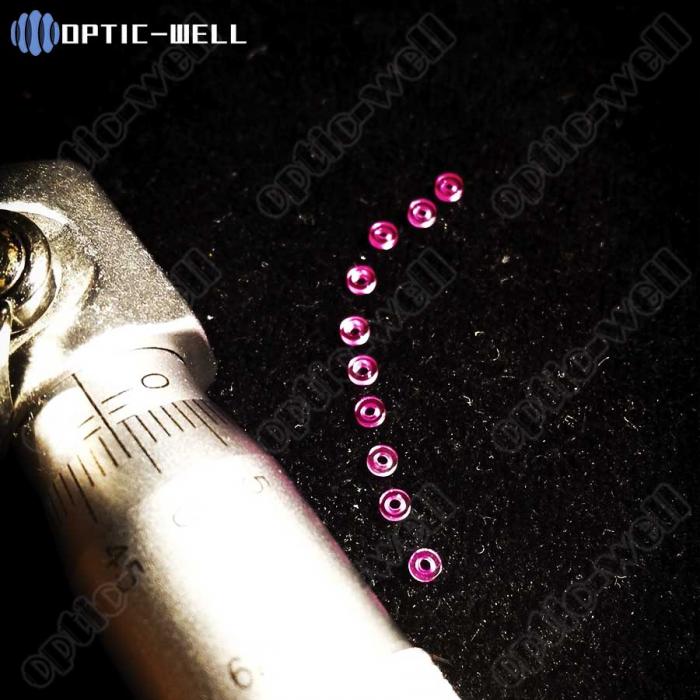

Ruby Bearings
Name:Ruby Bearings
Diameter:From 1 mm (.039”) to 305 mm (12”) in any optical axis
Thickness:From 0.2mm up to 20mm
Flatness:Varies by thickness but can be λ/10 @633nm or better
Parallelism:Varies by size but can be as tight as 1 arc second
Surface Quality:S/D 80/60~20/10 per MIL-PRT-13830
Quantity:Quantities from singles to full large scale production runs
Materials:Sapphire, Bk7, Fused Silica, Quartz, and Optical Glass
Coating:Band pass, Cut off, AR, ETC...
Delivery time:Usually 4 weeks after deposit received

Product Description

1.Main Types

V-Jewels , Cup-Jewels

 2.Details

  Tooling Tolerance(Length,Wideth,Hight): ±0.02mm

  Surface Quality: Polished Ra:0.05

  Size: Customized

Min&Max sizes: Dia 1mm~Dia 10mm, Thickness 0.2mm~10mm
