| Name: | Optical Windows BK7 Windows Quartz Windows |
| Material:: | Bk7/ Quartz/ Sapphire/ ZnSe/ Ge |
| Dimensions: | φ1~φ300mm Or 1x1~ 300x300mm |
| Thickness: | From 0.25mm up to 200mm |
| Surface Quality: | S/D 80/40~ 20/10 Per MIL-PRT-13830B |
| Surface Flatness: | Best As λ/20 @633nm |
| Parallelism: | Best As In 10Arcsec |
| Coaing: | AR/ Bandpass/ Cut Off/ DLC/ AF |
Product Description
.Optical Window BK7 Window Quartz Window
The optical window is used as a protective element between the two environments, which can isolate the possible pressure differences, corrosive gases, friction, shock, heat and cold in the two different environments. They are simple sheets, polished on both sides, flat and parallel. The optical window does not change the propagation characteristics of light. Generally, depending on the use environment, the optical window has different requirements in different frequency bands such as visible light, infrared, ultraviolet, etc. Of course, the best glass type is based on your needs. With knowledge, expertise and technology, Optic-Well can meet your precise machining specifications in BK7, fused silica, sapphire, quartz and silicon materials. Our optical raw materials are provided by well-known manufacturers, which ensure the performance and quality of optical glass.
.About Optical Materials
Different optical materials can provide different properties, you can quickly judge which material you need by browsing the basic parameters of some common optical materials shown below. We can do our best to meet the needs of customers. If you have special requirements for optical materials or further questions, please contact us to ask related questions.
Material:
Properties: |
B270 |
CaF2 |
Ge |
N-BK7 |
Sapphire |
UV Fused Silica |
Refractive Indes(nd) |
1.523 |
1.434 |
4.003 |
1.517 |
1.768 |
1.458 |
Coefficient Of Disperasion (Vd) |
58.5 |
95.1 |
N/A |
64.2 |
72.2 |
67.7 |
Density(g/cm³） |
2.55 |
3.18 |
5.33 |
2.46 |
3.97 |
2.2 |
TCE（μm/m°C） |
8.2 |
18.85 |
6.1 |
7.1 |
5.3 |
0.55 |
Soften Temperature(℃） |
533 |
800 |
936 |
557 |
2000 |
1000 |
Knoop Hardness(kg/m㎡） |
542 |
158.3 |
780 |
610 |
2200 |
500 |
Transmission Capacity |
250nm~3200nm |
125nm~1000nm |
2μm~15μm |
350nm~2000nm |
250nm~4000nm |
193nm~2000nm |
.Products:

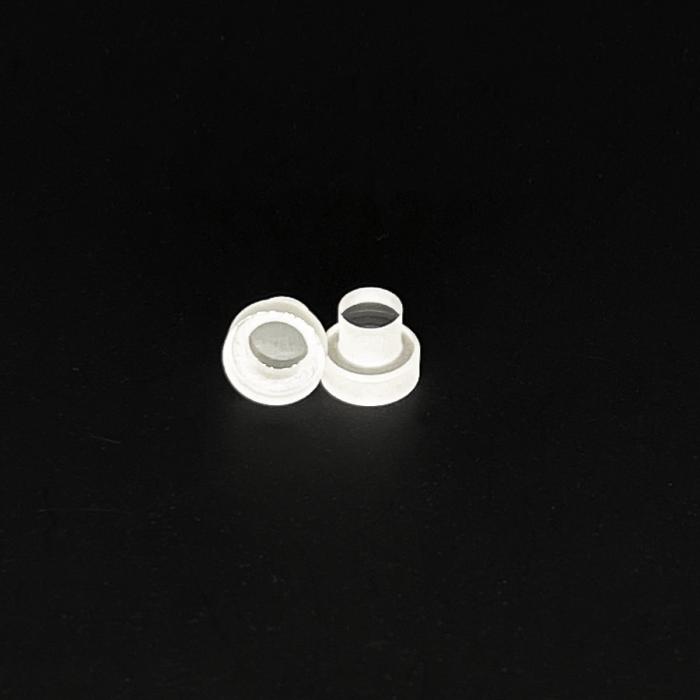

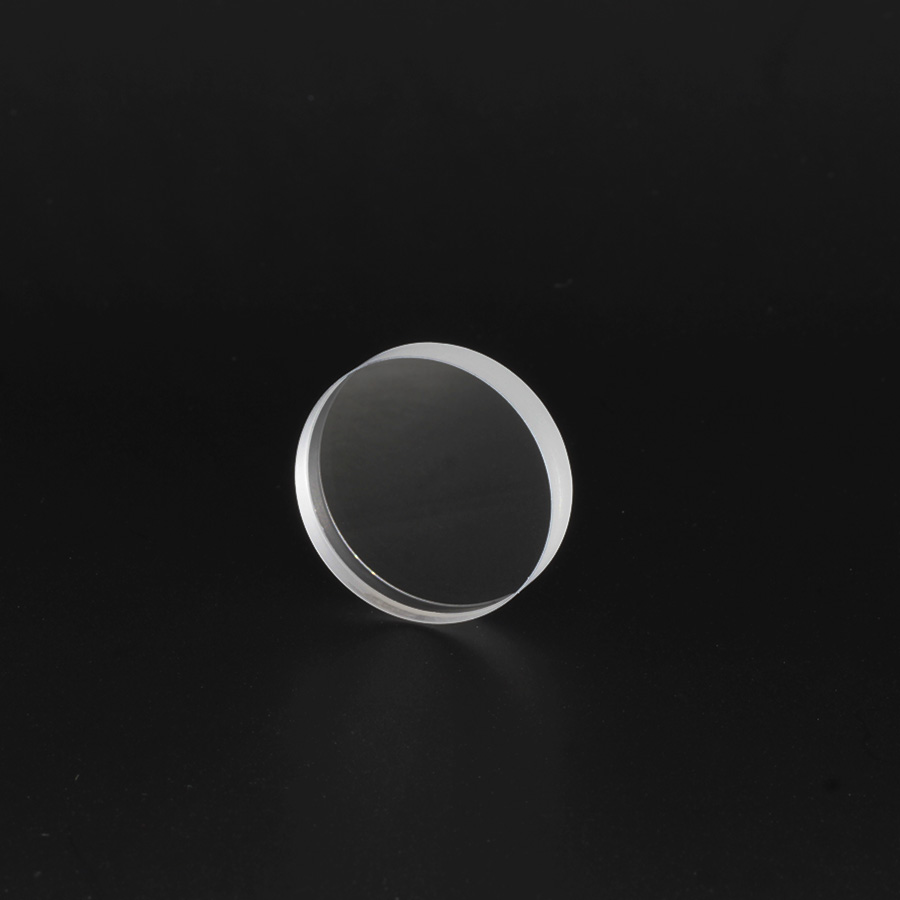

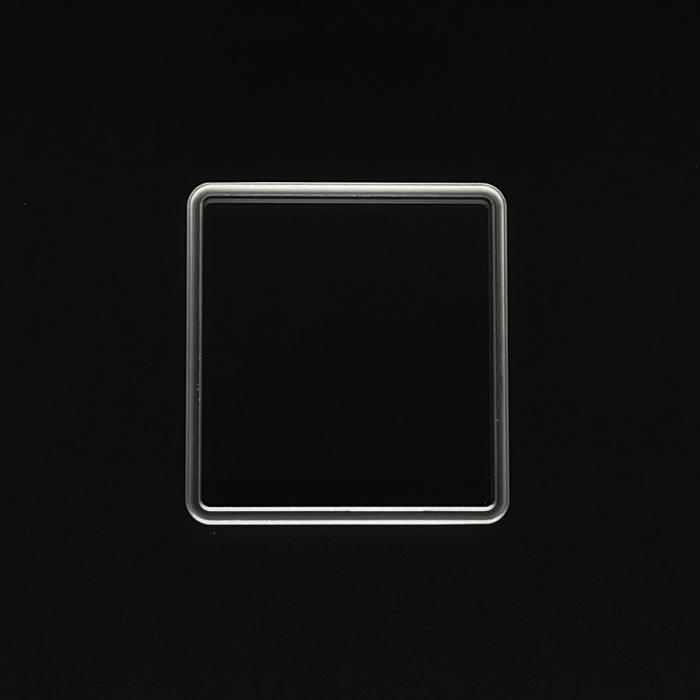

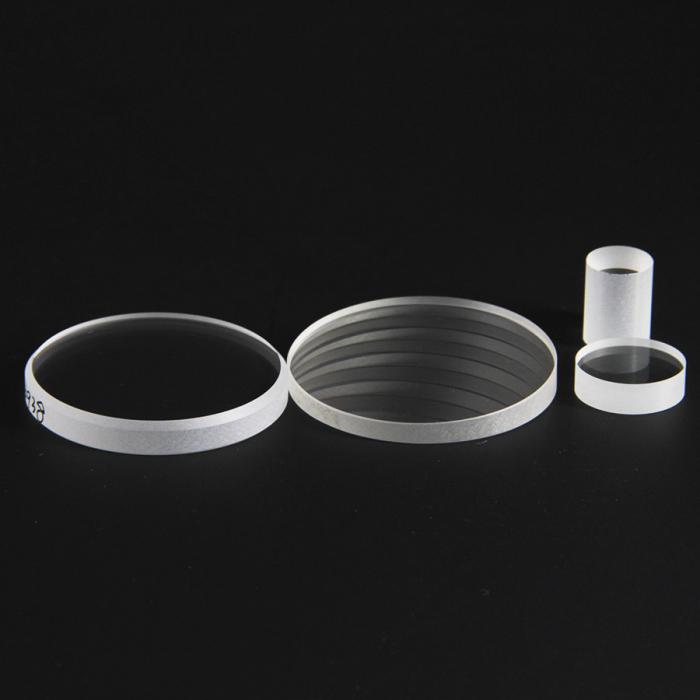

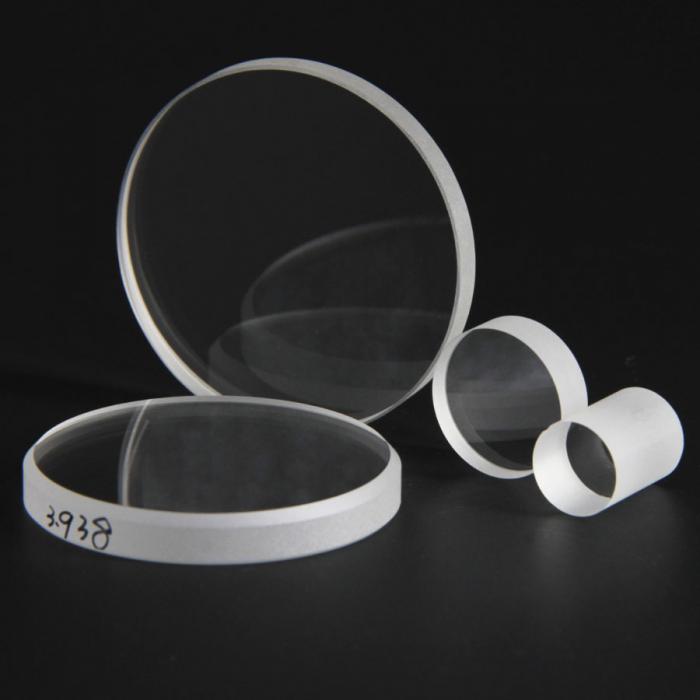

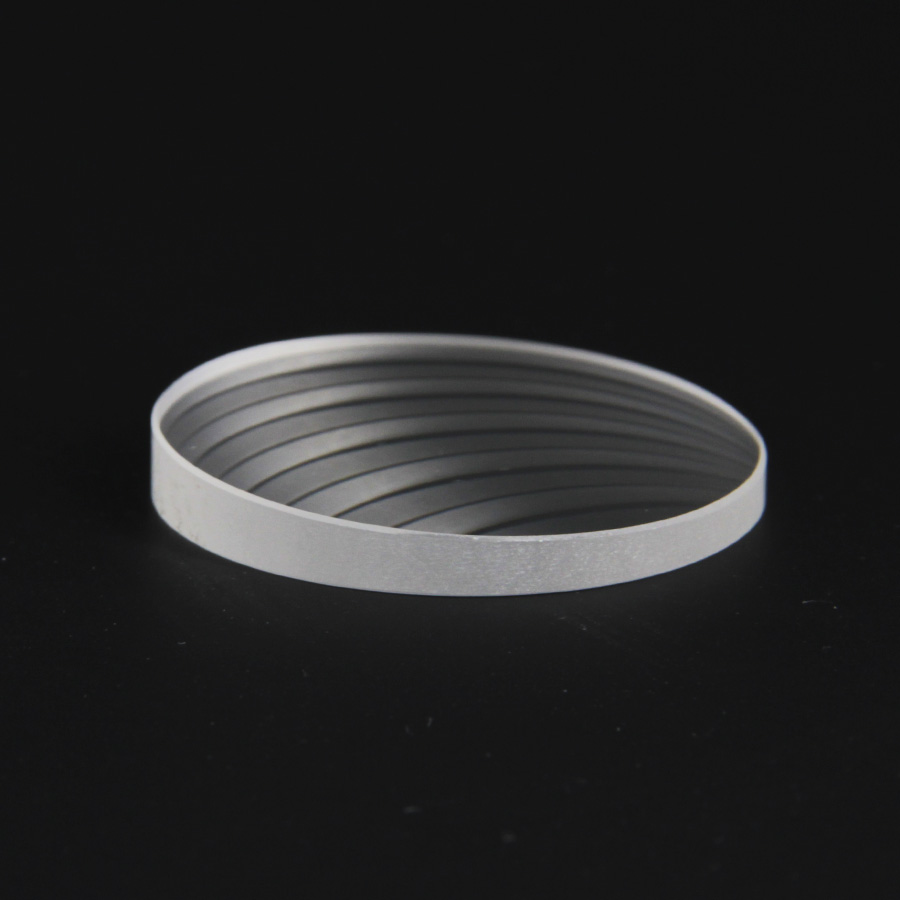

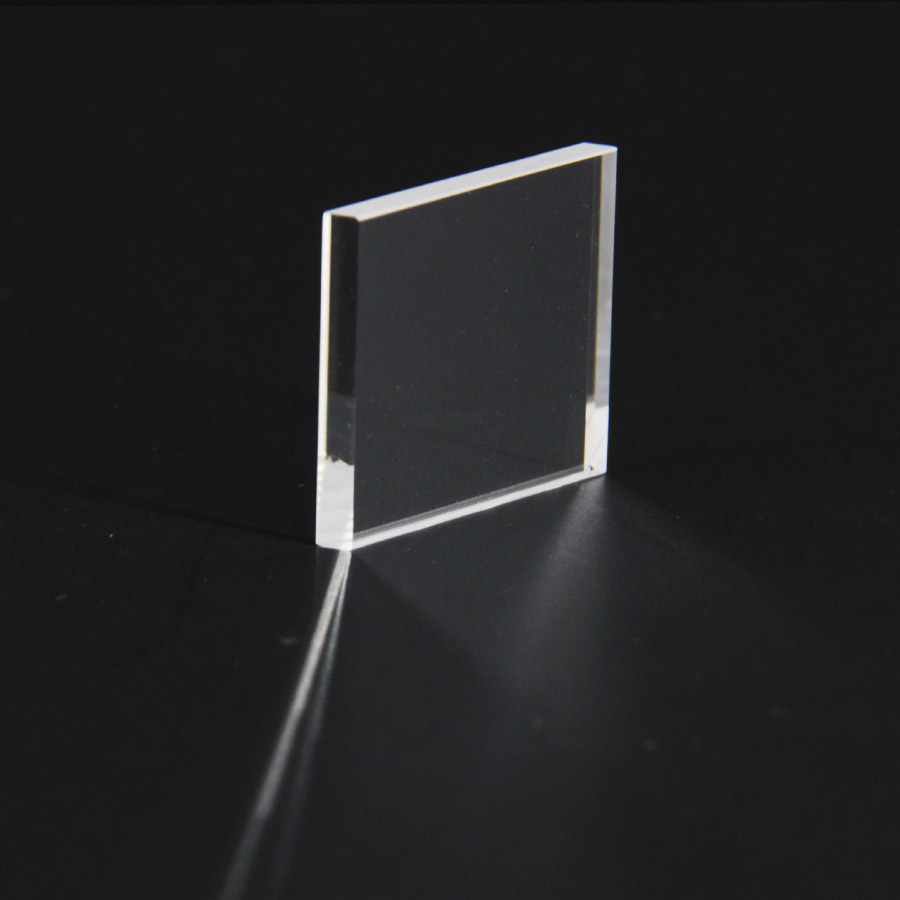

BK7(K9) Optical Window Quartz Optical Window Sapphire Optical Window

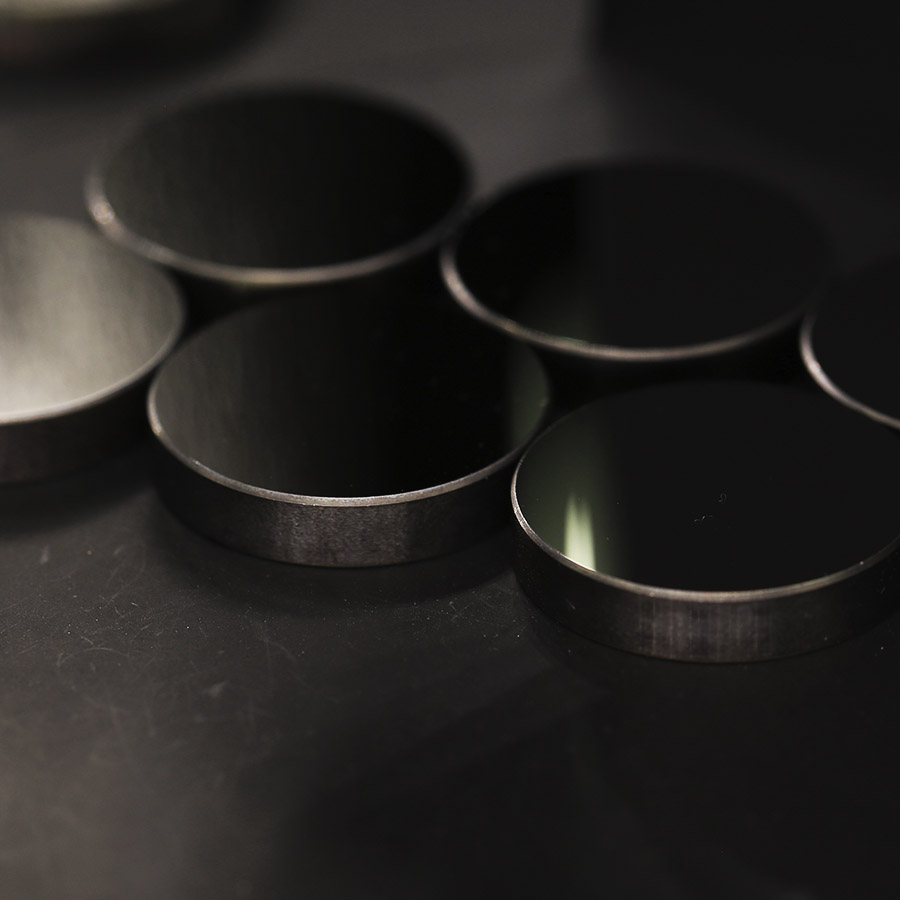

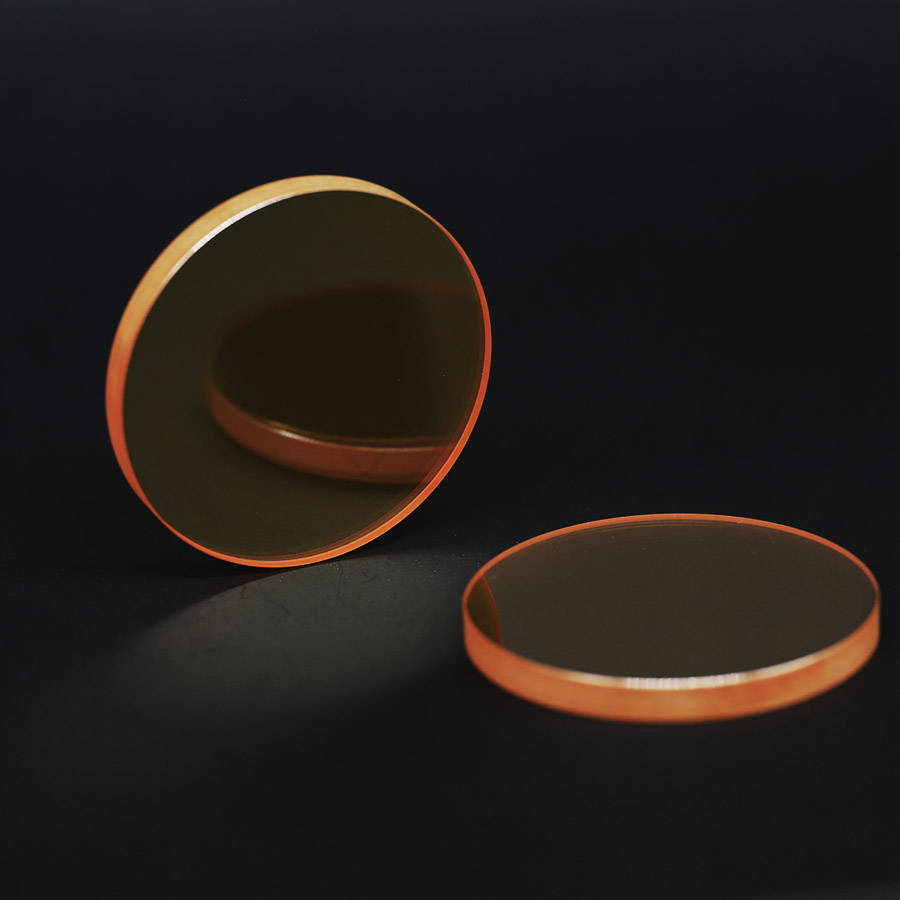

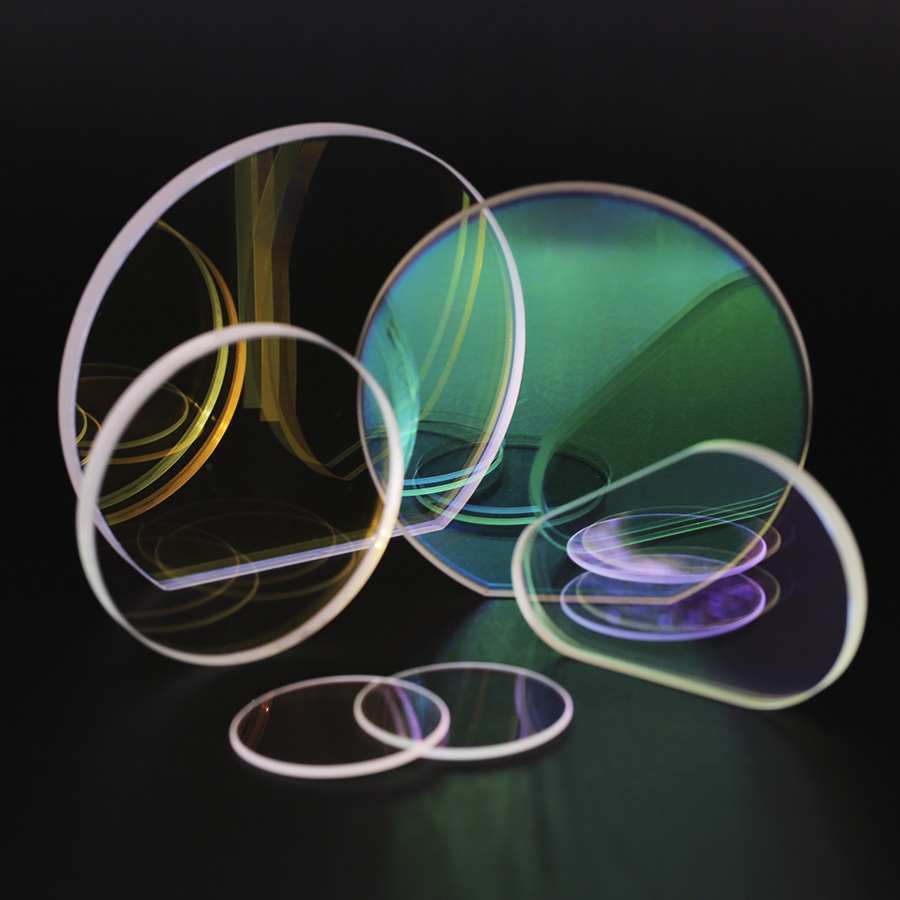

ZnSe Window Ge Window Coated Optical Window
.Processing Ability
1. About Shapes: We can offer wide range of shapes to meet customers requests. Generally we can make Flat Optical Windows/ Stepped Optical Windows / Optical Windows With Special Chamfers/ Drilled Optical Window/ Wedged Optical Window/ Optical Window With Groove/ Irregular Flat Optical Window/ Customized Shapes.
2. About Dimensions: Generally, The Maximum size is limited by the materials and our machine. the maximum size we can handle is under φ300mm or 300x300mm, The Minimum size is not smaller than φ1mm or 1x1mm. Thickness not less than 0.25mm, not more than the materials limit.
3. Tolerance: Considering the specific use of the optical window, the dimensional tolerance is generally not too stringent, so the general tolerance requirement is ±0.1mm. However, we can achieve higher ±0.02, which has met the more precise assembly requirements.
4. Surface Quality: We use MIL-PRF-13830B Standard as our base for surface quality checking, usually S/D 80/50 can meet the surface quality requirements of most optical windows, but we can provide up to S/D20/10 surface quality requirements.
5. Surface Flatness: Most Optical windows do not require flatness, if otherwise specified, we offer general 15λ@ 633nm, if there is a higher requirement, we can offer up to λ/20 @633nm(consult our sales staff for details)
6. Other Specifications Please Contact Our Sales.
