.Products Intro

Optic-Well provides wide range of optical components. General we offer from optical materials and optical parts to precision optics, sapphire parts to infrared optical field parts, as well as coating business options.

Please check the following list of our products

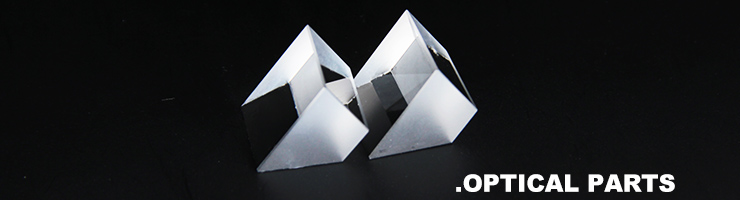

.Optical Parts

We provide optical parts made of common optical materials, including but not limited to optical windows, optical lenses, optical prisms, rods, tubes and other common optical parts made of optical materials such as BK7, quartz, borosilicate glass, etc., at the same time we also provide coating services, such as anti-reflection, anti-fingerprint, waterproof, reflection, etc. We provide professional customization service, please contact our sales to have customized your own products.

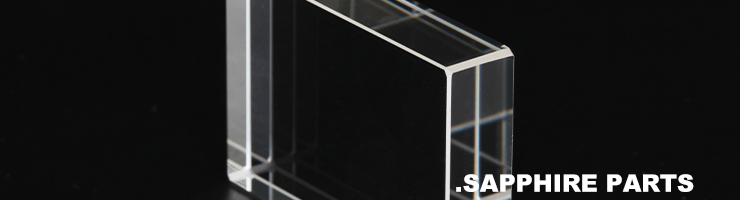

.Sapphire Parts

We offer two different kind of sapphire crystal for choose: one is KY sapphire, high purity, no bubbles, no grain boundaries inside, suitable for optical parts; The other is EFG sapphire, which is used as growned, without mechanical processing of surface crushing layer and microcracks, suitable for high-pressure vessels and long tubes, long rods. We offer common optical parts made of sapphire such as sapphire windows, sapphire prism, sapphire lens, sapphire rods, sapphire tubes, also provide customization service.

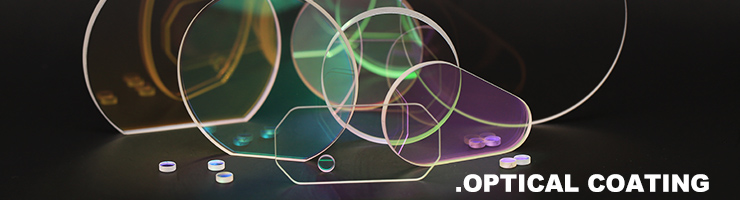

.Optical Coating

We provide common coating types covering ultraviolet to mid-infrared bands, as well as protective coatings such as DLC and waterproof and antifouling.

. Anti-Reflection Film- Improve the transmittance of optical systems 300nm~16μm.

. High-Reflection Film- Dielectric HR film and Metal HR film

. Wavelength Bandpass Filter- IRCUT-OFF/ IR-UV Cut Off/ Day and Night Filter/ 850nm Band Pass/ 1064nm Narrow Band Pass

. Wavelength Splitter- Short Wavelength Pass Filter/ Long Wavelength Pass Filter

. Diamond Like Carbon / Waterproof / Antifouling

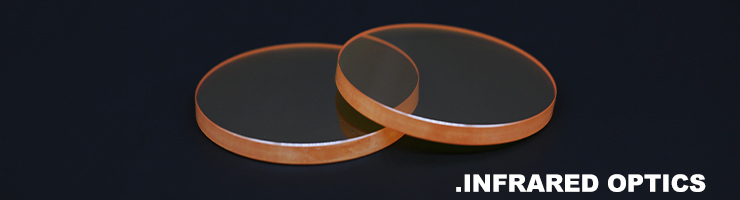

.Infrared Optics

The main difference between infrared optical system and visible optical system is that only limited materials can be applied to the mid-infrared and long-wave infrared bands, and there are fewer materials that can be used in these two bands, and the following are common infrared optical material products that our company can provide

. Ge- 1.9μm~16μm.

. ZnS- 0.6μm~15μm.

. ZnSe- 0.6μm~16μm.

. Si- 1.2μm~8μm.

. GaF2- 0.18μm~8μm.

. Sapphire- 0.25μm~5μm.

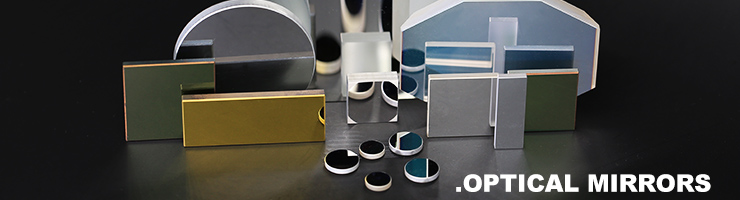

.Optical Mirrors

A metal film layer is coated on the substrate to achieve high reflection of light, and the metal film has a very wide reflection spectral band, but it is often accompanied by a certain amount of light absorption; In order to obtain higher reflectivity, the metal reflective film can also be coated with a dielectric film layer to enhance the metal reflective film;

. Aluminized-Reflection mirror, reinforced aluminum mirror is mainly used in visible light high reflection

. Silver-Reflection mirror, reinforced silver mirrors Silver-plated mirrors have higher reflectivity than aluminum plating and are usually used in applications with high reflectivity requirements

. Gold-Reflection mirror CO2 laser resonator
