| Name: | Micro Sapphire Window |
| Diameter: | φ5mm ± 0.05mm |
| Thickness: | 5mm ±0.05mm |
| Surface Quality: | Polished S/D 80/50 |
| Materials: | Optical Grade Sapphire |
| Edges: | No Chips On Edges |
| Coating: | As Requests |
Product Description
.Micro Sapphire Windows

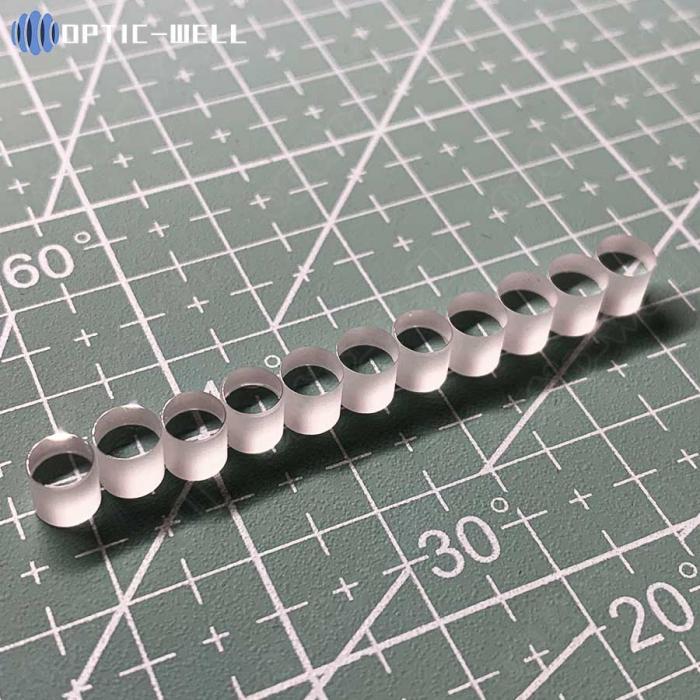

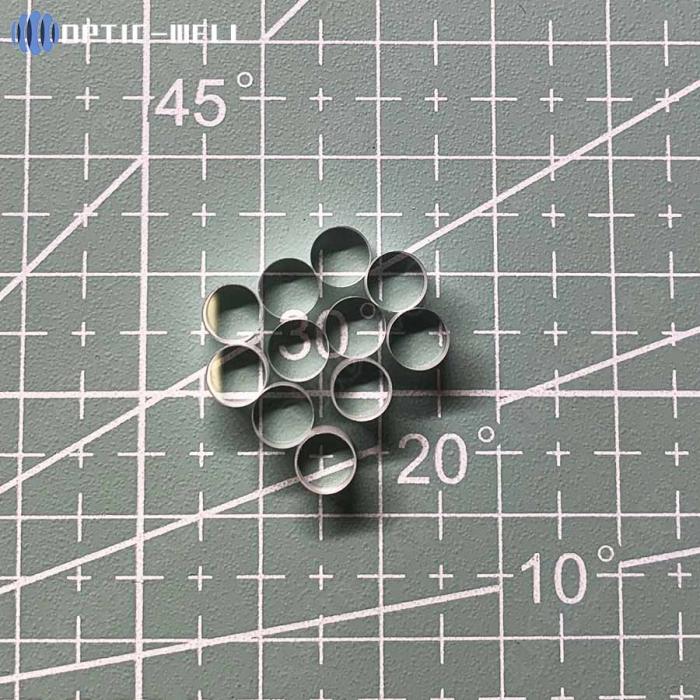

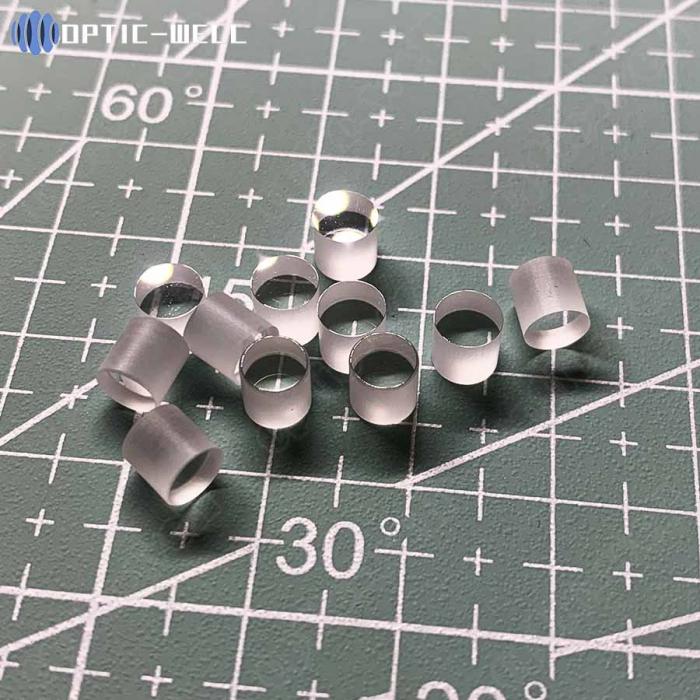

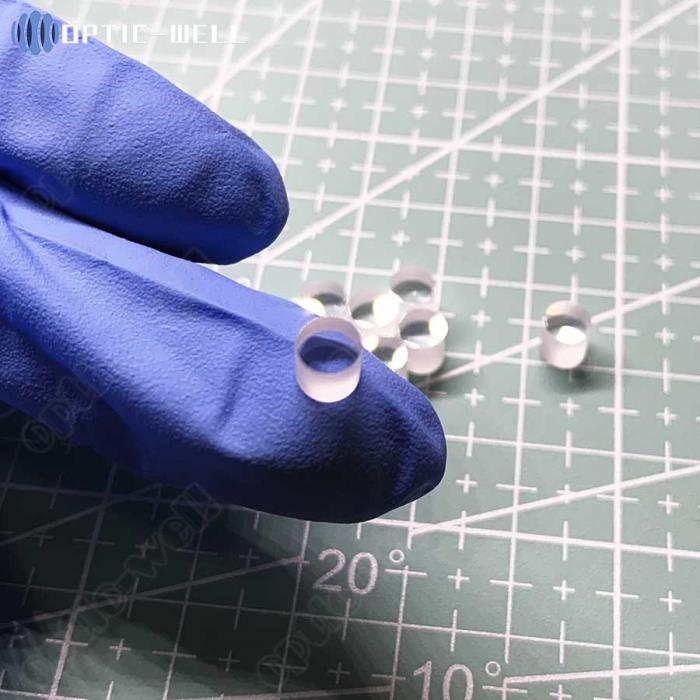

We are specialized in processing micro sapphire components, like holes, jewels, windows, tubes, rods. The smallest sapphire window we can supply is 2mm in diameter. The pictures shows a samples of our micro sapphire windows φ5x5.
We can both supply commercial grade polished and precision polished sapphire window for our customer.
Commercial grade polished:S/D 80/50 and 20λ@633nm
Precision polished: Up to S/D 10/5 and λ/10@633nm
Other Shapes we supplying:
1.Round Sapphire Window;
2.Square Sapphire Window;
3.Sapphire Sector Window;
4.Sapphire Rings;
We can also supplying irregular size sapphire windows and components, please don't hesitate to contact us!
