| Name: | NMR Sapphire Tube |
| Material:: | Monocrystalline Sapphire |
| Out Diameter:: | From OD1 to OD57 mm |
| Inner Diameter:: | From ID0.6 to ID48 mm |
| Tolerance:: | Typical ±0.25mm |
| Length:: | Maximum 1500mm |
| Surface Quality:: | Transparent As Grown |
| Purity: | 99.9995 |
Product Description

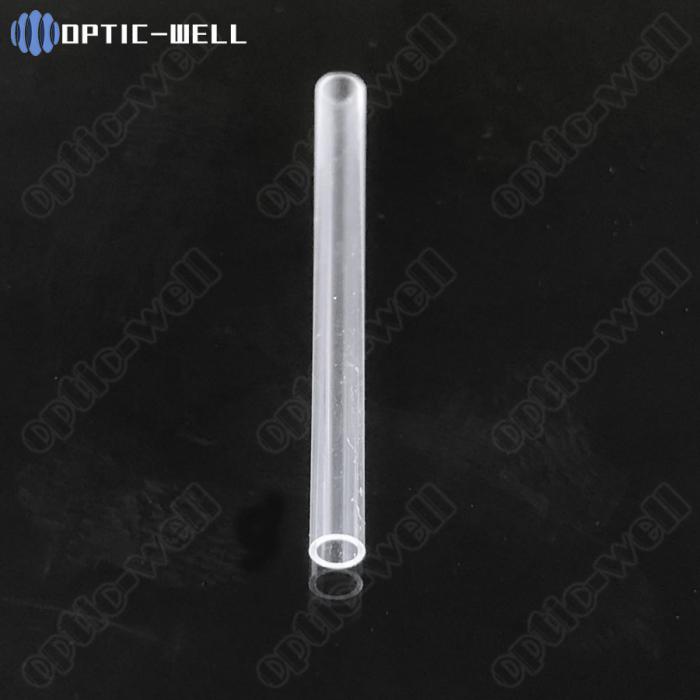

.NMR Sapphire Tube
Nuclear magnetic resonance sapphire tubes (NMR Sapphire Tube) are popular among High Pressure NMR UP to 500Bar ( 50Mpa); 19F research, especially research with HF acid involved; 29Si research.
Optic-Well provide monocrystalline EFG as grown NMR Sapphire Tubes, It has the following significant advantages:
1. Excellent heat resistance and pressure resistant ability;
2. High working temperature reach 1950℃；
3. Hardness reach Mohs grade 9;
4. High air tightness.
Optic-Wells' sapphire NMR tubes have high straightness and uniform mass distribution, and each sapphire NMR tube is tested with a fine-tuned turbine OD fitting.

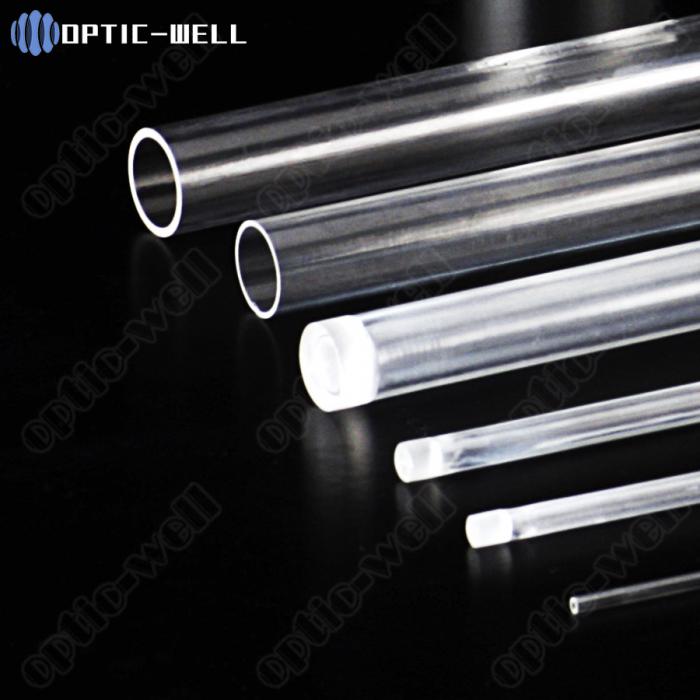

We offer wide range of EFG sapphire tubes from OD1mm ~OD57mm, you can check the product list as in following links.
